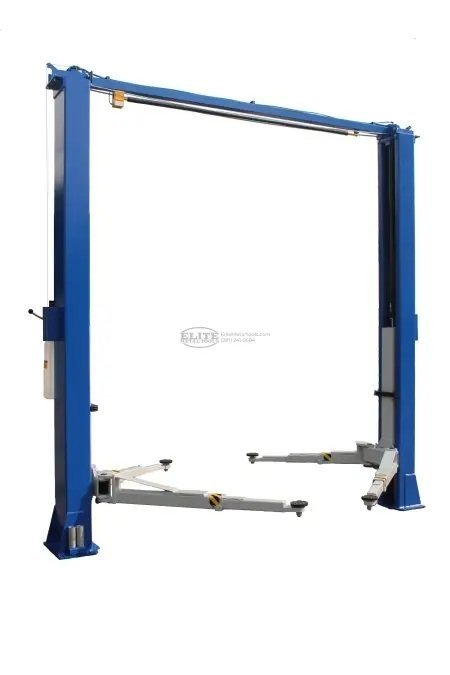

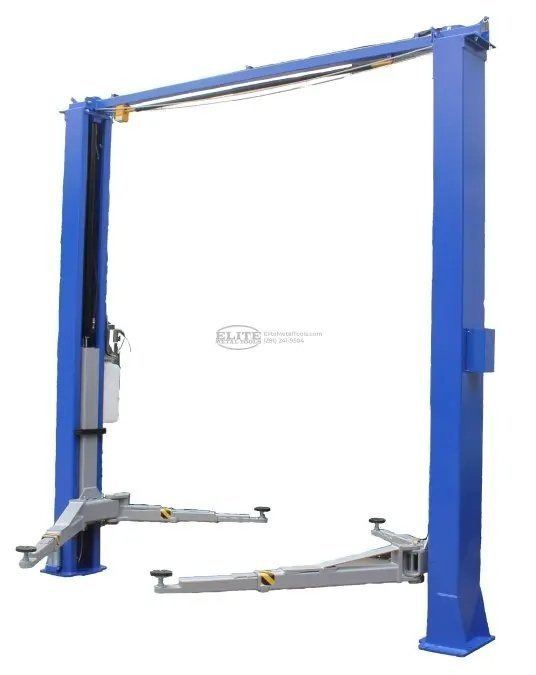

The TP11KC-DX 11,000 lb Two-Post Clear Floor Lift is a heavy-duty automotive service solution engineered for professional workshops that demand maximum strength, flexibility, and safety. Designed with a Bi-Symmetric arm system and clear-floor configuration, it delivers superior access under vehicles while maintaining exceptional lifting stability for a wide range of cars, SUVs, and light trucks.
Built for high-performance service environments, this lift features direct-drive hydraulic cylinders, a reinforced single-piece column structure, and advanced safety systems to ensure consistent and secure operation. Its combination of symmetric and asymmetric capability allows technicians to work efficiently with different vehicle sizes and configurations.
- 11,000 lb lifting capacity for heavy-duty automotive applications
- Bi-Symmetric arm design for flexible symmetric or asymmetric operation
- 3-stage front arms for improved reach and positioning versatility
- Direct-drive hydraulic cylinders for smooth, reliable lifting
- Heavy-duty arm restraint system for enhanced safety during operation
- Single-point lock release for fast and efficient control
- Spin-up low-profile lift pads for low-clearance vehicles
- Stackable adapters included for adjustable lifting height
- External hose guards and rubber door protection for added durability
Specifications:
- Model: TP11KC-DX
- Capacity: 11,000 lbs
- Overall Height: 144 in
- Overall Width (with power unit): 145.5 in
- Max Lift Height: 71 in
- Width Between Columns: 116 in
- Drive-Thru Clearance: 104 in
- Min Pad Height: 4 in
- Lifting Speed: ~50 seconds
- Arm Reach (Short): 23 in – 45 in
- Arm Reach (Long): 41 in – 57 in
- Max Load Per Arm: 2,750 lbs
- Power Requirement: 220V, 20A, 1PH
- Ship Weight: 1,705 lbs
Engineered for strength, precision, and shop efficiency, the TP11KC-DX delivers professional-grade lifting performance with the versatility needed for modern automotive service environments.
