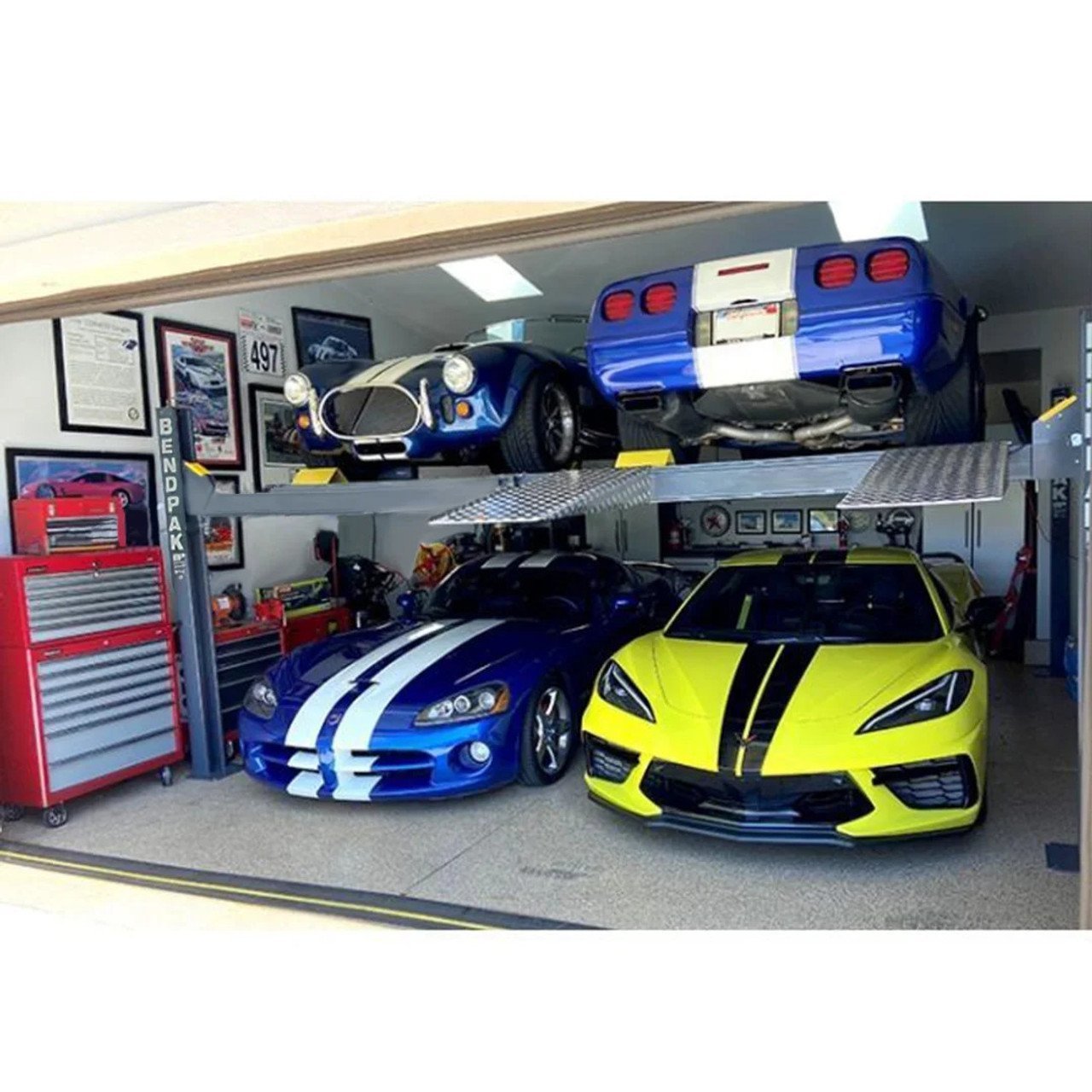

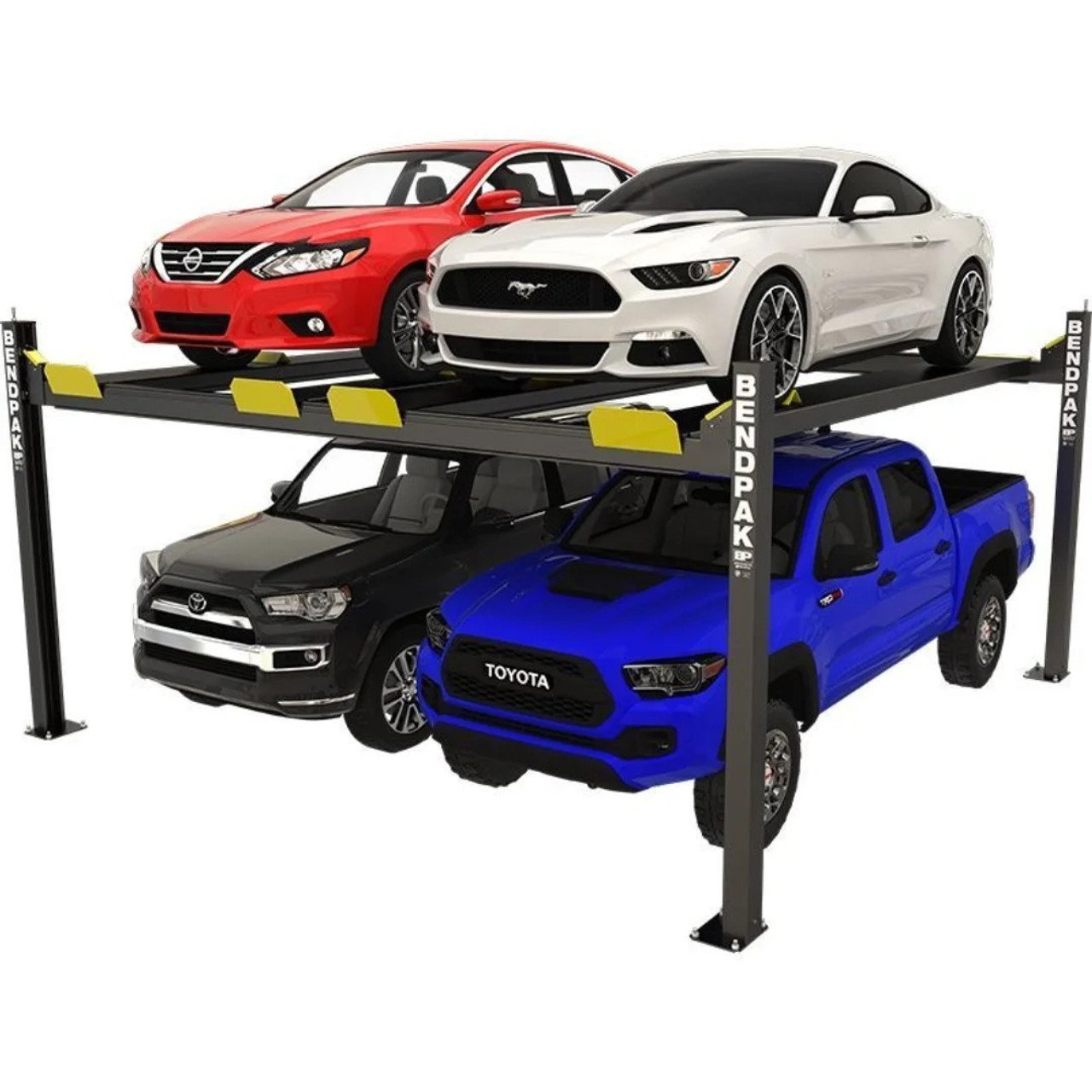

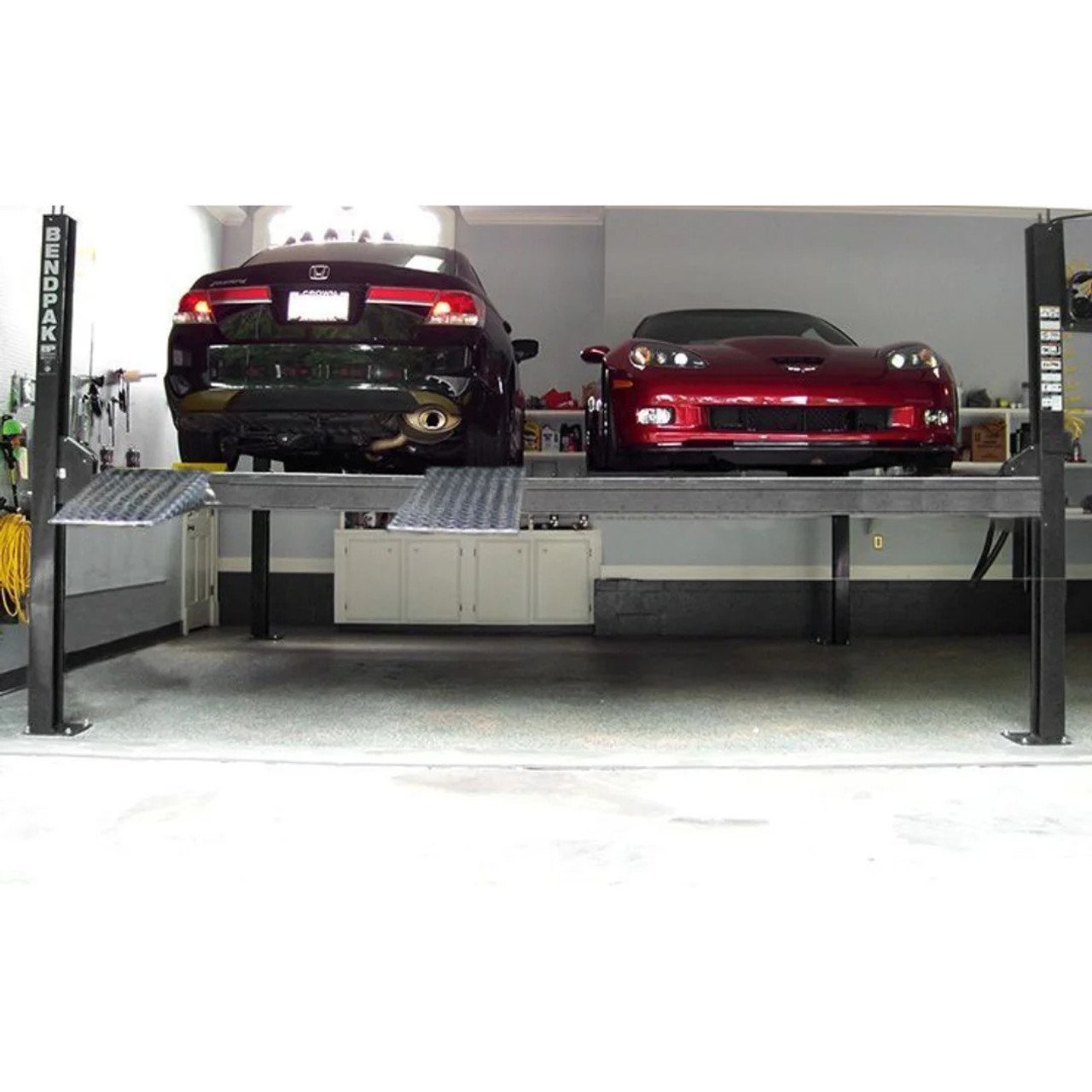

Bendpak HD-9SWX 9,000 Lbs Super-Wide 4-Post Lift

The BendPak HD-9SWX 9,000-lb Super Wide 4-Post Lift is a premium heavy-duty parking and service solution designed to maximize garage space while providing exceptional lifting capacity and versatility. Engineered for both residential and professional use, it allows users to store and service multiple vehicles efficiently, making it ideal for high-end garages, workshops, and automotive storage facilities.

With its extended super-wide design and increased runway length, the HD-9SWX accommodates a wide range of vehicles, including long-wheelbase trucks and SUVs. Its freestanding structure and electric-hydraulic system deliver smooth, reliable operation, while advanced safety mechanisms ensure secure lifting at all times.

• 9,000 lb lifting capacity for cars, trucks, and SUVs
• Super-wide 4-post design enables multi-vehicle parking and storage
• Extended runway length for improved vehicle accommodation
• Electric-hydraulic system for smooth and controlled lifting
• Fully enclosed cables, sheaves, and safety lock system for protection
• Multi-position locking system for enhanced safety and flexibility
• Non-skid runway surfaces for secure vehicle placement
• Removable approach ramps for additional drive-under clearance
• Adjustable runway spacing for different vehicle widths

Specifications:

• Model: BendPak HD-9SWX
• Capacity: 9,000 lbs (4,082 kg)
• Overall Width: 202 in
• Overall Length: 242.5 in
• Outside Length: 198 in
• Post Height: 102 in
• Max Rise: 89.06 in
• Max Lift Height: 84.29 in
• Distance Between Posts: 192 in
• Runway Length: 188.5 in
• Runway Width: 19 in
• Width Between Runways: 34.3 in – 41 in
• Locking Positions: 17 (spaced every 4 in)
• Lifting Time: ~65 seconds
• Power Requirement: 200V, 60Hz, 1PH
• Minimum Wheelbase (rated): 135 in
• Max Height Under Ramp: 82.11 in

Built for maximum storage efficiency and professional-grade performance, the BendPak HD-9SWX transforms any garage into a high-capacity vehicle parking and service facility with superior safety and durability.
